Abstract

What is the binary representation (bitlength = 256) of the decimal number -872362346234627834628734627834627834628? Don’t ask Excel’s built-in function DEC2BIN. It can only deal with numbers between -512 and 511. If you want to get the correct answer

1111111111111111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111111111111111111111111111101011011111011010100011111
1001110111100101111001000010000111010110010010100110011010001001100111101010
0001010101001011110011111100

then have a look at the function sbDec2Bin listed below.

Please note that fractional parts are supported for positive decimals only. The decimal 0.5 is in binary format equal to 0.1, for example.

Note: sbDec2Bin is used as an example on page Polya - How to Solve It .

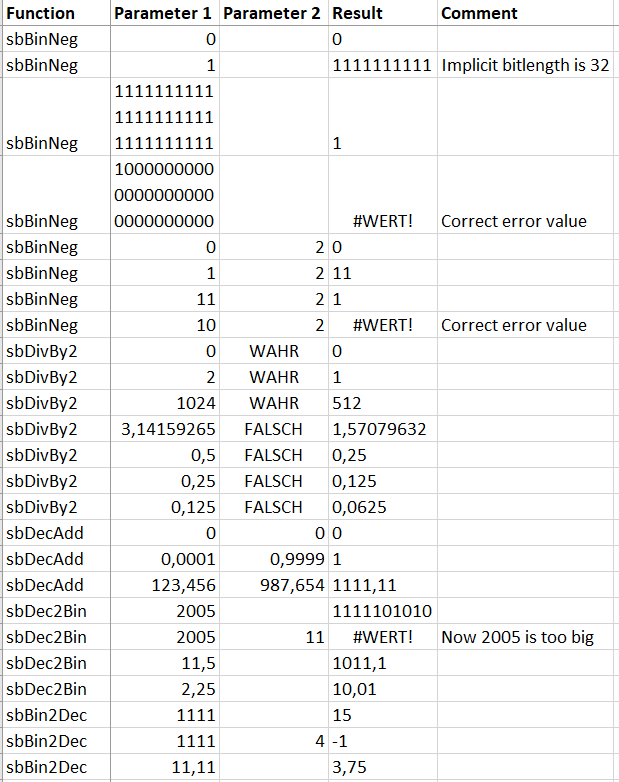

sbDec2Bin

Appendix – sbDec2Bin Code

Please read my Disclaimer.

Option Explicit

Function sbDec2Bin(ByVal sDecimal As String, _
               Optional lBits As Long = 32, _
               Optional blZeroize As Boolean = False) As String
'Convert a decimal number into its binary equivalent.
'Source (EN): http://www.sulprobil.de/sbdec2bin_en/
'Source (DE): http://www.berndplumhoff.de/sbdec2bin_de/
'(C) (P) by Bernd Plumhoff 18-Dec-2021 PB V0.4
Dim sDec As String
Dim sFrac As String
Dim sD As String 'Internal temp variable to represent decimal
Dim sB As String
Dim blNeg As Boolean
Dim i As Long
Dim lPosDec As Long
Dim lLenBinInt As Long
lPosDec = InStr(sDecimal, Application.DecimalSeparator)
If lPosDec > 0 Then
   If Left(sDecimal, 1) = "-" Then 'So far we cannot handle
                        'negative fractions, will come later
       sbDec2Bin = CVErr(xlErrValue)
       Exit Function
   End If
   sDec = Left(sDecimal, lPosDec - 1)
   sFrac = Right(sDecimal, Len(sDecimal) - lPosDec)
   lPosDec = Len(sFrac)
Else
   sDec = sDecimal
   sFrac = ""
End If
sB = ""
If Left(sDec, 1) = "-" Then
   blNeg = True
   sD = Right(sDec, Len(sDec) - 1)
Else
   blNeg = False
   sD = sDec
End If
Do While Len(sD) > 0
   Select Case Right(sD, 1)
       Case "0", "2", "4", "6", "8"
           sB = "0" & sB
       Case "1", "3", "5", "7", "9"
           sB = "1" & sB
       Case Else
           sbDec2Bin = CVErr(xlErrValue)
           Exit Function
   End Select
   sD = sbDivBy2(sD, True)
   If sD = "0" Then
       Exit Do
   End If
Loop
If blNeg And sB <> "1" & String(lBits - 1, "0") Then
   sB = sbBinNeg(sB, lBits)
End If
'Test whether string representation is in range and correct
'If not, the user has to increase lbits
lLenBinInt = Len(sB)
If lLenBinInt > lBits Then
   sbDec2Bin = CVErr(xlErrNum)
   Exit Function
Else
   If (Len(sB) = lBits) And (Left(sB, 1) <> -blNeg & "") Then
       sbDec2Bin = CVErr(xlErrNum)
       Exit Function
   End If
End If

If blZeroize Then sB = Right(String(lBits, "0") & sB, lBits)

If lPosDec > 0 And lLenBinInt + 1 < lBits Then
   sB = sB & Application.DecimalSeparator
   i = 1
   Do While i + lLenBinInt < lBits
       sFrac = sbDecAdd(sFrac, sFrac) 'Double fractional part
       If Len(sFrac) > lPosDec Then
           sB = sB & "1"
           sFrac = Right(sFrac, lPosDec)
           If sFrac = String(lPosDec, "0") Then
               Exit Do
           End If
       Else
           sB = sB & "0"
       End If
       i = i + 1
   Loop
   sbDec2Bin = sB
Else
   sbDec2Bin = sB
End If
End Function

Function sbBin2Dec(sBinary As String, _
    Optional lBits As Long = 32) As String
'Converts a binary number into its decimal equivalent.
'Source (EN): http://www.sulprobil.de/sbdec2bin_en/
'Source (DE): http://www.berndplumhoff.de/sbdec2bin_de/
'(C) (P) by Bernd Plumhoff 18-Dec-2021 PB V0.4
Dim sBin As String
Dim sB As String
Dim sFrac As String
Dim sD As String
Dim sR As String
Dim blNeg As Boolean
Dim i As Long
Dim lPosDec As Long

lPosDec = InStr(sBinary, Application.DecimalSeparator)
If lPosDec > 0 Then
   If (Left(Right(String(lBits, "0") & sBinary, lBits), 1) = "1") And _
       Len(sBin) >= lBits Then 'So far we cannot handle Right(String(lBits, "0") & sB, lBits)
                    'negative fractions, will come later
       sbBin2Dec = CVErr(xlErrValue)
       Exit Function
   End If
   sBin = Left(sBinary, lPosDec - 1)
   sFrac = Right(sBinary, Len(sBinary) - lPosDec)
   lPosDec = Len(sFrac)
Else
   sBin = sBinary
   sFrac = ""
End If

Select Case Sgn(Len(sBin) - lBits)
   Case 1
       sbBin2Dec = CVErr(xlErrNum)
       Exit Function
   Case 0
       If Left(sBin, 1) = "1" Then
           sB = sbBinNeg(sBin, lBits)
           blNeg = True
       Else
           sB = sBin
           blNeg = False
       End If
   Case -1
       sB = sBin
       blNeg = False
End Select
sD = "1"
sR = "0"
For i = Len(sB) To 1 Step -1
   Select Case Mid(sB, i, 1)
       Case "1"
           sR = sbDecAdd(sR, sD)
       Case "0"
           'Do nothing
       Case Else
           sbBin2Dec = CVErr(xlErrNum)
           Exit Function
   End Select
   sD = sbDecAdd(sD, sD) 'Double sd
Next i

If lPosDec > 0 Then 'now the fraction
   sD = "0" & Application.DecimalSeparator & "5"
   For i = 1 To lPosDec
       If Mid(sFrac, i, 1) = "1" Then
           sR = sbDecAdd(sR, sD)
       End If
       sD = sbDivBy2(sD, False)
   Next i
End If

If blNeg Then
   sbBin2Dec = "-" & sR
Else
   sbBin2Dec = sR
End If
End Function

Function sbDivBy2(sDecimal As String, blInt As Boolean) As String
'Divide positive sDecimal by two, blInt = TRUE returns integer only
'Source (EN): http://www.sulprobil.de/sbdec2bin_en/
'Source (DE): http://www.berndplumhoff.de/sbdec2bin_de/
'(C) (P) by Bernd Plumhoff 18-Dec-2021 PB V0.4
Dim i As Long
Dim lPosDec As Long
Dim sDec As String
Dim sD As String
Dim lCarry As Long

If Not blInt Then
   lPosDec = InStr(sDecimal, Application.DecimalSeparator)
   If lPosDec > 0 Then
       sDec = Left(sDecimal, lPosDec - 1) & _
              Right(sDecimal, Len(sDecimal) - lPosDec) 'Without decimal point
       'lposdec already defines location of decimal point
   Else
       sDec = sDecimal
       lPosDec = Len(sDec) + 1 'Location of decimal point
   End If
   If ((1 * Right(sDec, 1)) Mod 2) = 1 Then
       sDec = sDec & "0"  'Append zero so that integer algorithm
                          'below calculates division exactly
   End If
Else
   sDec = sDecimal
End If

lCarry = 0
For i = 1 To Len(sDec)
   sD = sD & Int((lCarry * 10 + Mid(sDec, i, 1)) / 2)
   lCarry = (lCarry * 10 + Mid(sDec, i, 1)) Mod 2
Next i

If Not blInt Then
   If Right(sD, Len(sD) - lPosDec + 1) <> _
       String(Len(sD) - lPosDec + 1, "0") Then   'frac part is non-zero
       i = Len(sD)
       Do While Mid(sD, i, 1) = "0"
           i = i - 1  'Skip trailing zeros
       Loop
       sD = Left(sD, lPosDec - 1) & Application.DecimalSeparator & _
            Mid(sD, lPosDec, i - lPosDec + 1) 'Insert decimal point again
   End If
End If

i = 1
Do While i < Len(sD)
   If Mid(sD, i, 1) = "0" Then
       i = i + 1
   Else
       Exit Do
   End If
Loop
If Mid(sD, i, 1) = Application.DecimalSeparator Then
   i = i - 1
End If
sbDivBy2 = Right(sD, Len(sD) - i + 1)

End Function

Function sbBinNeg(sBin As String, _
               Optional lBits As Long = 32) As String
'Negate sBin: take the 2's-complement, then add one
'Source (EN): http://www.sulprobil.de/sbdec2bin_en/
'Source (DE): http://www.berndplumhoff.de/sbdec2bin_de/
'(C) (P) by Bernd Plumhoff 18-Dec-2021 PB V0.4
Dim i As Long
Dim sB As String

If Len(sBin) > lBits Or sBin = "1" & String(lBits - 1, "0") Then
   sbBinNeg = CVErr(xlErrValue)
   Exit Function
End If

'Calculate 2's-complement
For i = Len(sBin) To 1 Step -1
   Select Case Mid(sBin, i, 1)
       Case "1"
           sB = "0" & sB
       Case "0"
           sB = "1" & sB
       Case Else
           sbBinNeg = CVErr(xlErrValue)
           Exit Function
   End Select
Next i

sB = String(lBits - Len(sBin), "1") & sB

'Now add 1
i = lBits
Do While i > 0
   If Mid(sB, i, 1) = "1" Then
       Mid(sB, i, 1) = "0"
       i = i - 1
   Else
       Mid(sB, i, 1) = "1"
       i = 0
   End If
Loop

'Finally strip leading zeros
i = InStr(sB, "1")
If i = 0 Then
   sbBinNeg = "0"
Else
   sbBinNeg = Right(sB, Len(sB) - i + 1)
End If

End Function

Function sbDecAdd(sOne As String, sTwo As String) As String
'Sum up two positive string decimals.
'Source (EN): http://www.sulprobil.de/sbdec2bin_en/
'Source (DE): http://www.berndplumhoff.de/sbdec2bin_de/
'(C) (P) by Bernd Plumhoff 18-Dec-2021 PB V0.4
Dim lStrLen As Long
Dim s1 As String
Dim s2 As String
Dim sA As String
Dim sB As String
Dim sR As String
Dim d As Long
Dim lCarry As Long
Dim lPosDec1 As Long
Dim lPosDec2 As Long
Dim sF1 As String
Dim sF2 As String

lPosDec1 = InStr(sOne, Application.DecimalSeparator)
If lPosDec1 > 0 Then
   s1 = Left(sOne, lPosDec1 - 1)
   sF1 = Right(sOne, Len(sOne) - lPosDec1)
   lPosDec1 = Len(sF1)
Else
   s1 = sOne
   sF1 = ""
End If
lPosDec2 = InStr(sTwo, Application.DecimalSeparator)
If lPosDec2 > 0 Then
   s2 = Left(sTwo, lPosDec2 - 1)
   sF2 = Right(sTwo, Len(sTwo) - lPosDec2)
   lPosDec2 = Len(sF2)
Else
   s2 = sTwo
   sF2 = ""
End If

If lPosDec1 + lPosDec2 > 0 Then
   If lPosDec1 > lPosDec2 Then
       sF2 = sF2 & String(lPosDec1 - lPosDec2, "0")
   Else
       sF1 = sF1 & String(lPosDec2 - lPosDec1, "0")
       lPosDec1 = lPosDec2
   End If
   sF1 = sbDecAdd(sF1, sF2) 'Add fractions as integer numbers
   If Len(sF1) > lPosDec1 Then
       lCarry = 1
       sF1 = Right(sF1, lPosDec1)
   Else
       lCarry = 0
   End If
   Do While lPosDec1 > 0
       If Mid(sF1, lPosDec1, 1) <> "0" Then
           Exit Do
       End If
       lPosDec1 = lPosDec1 - 1
   Loop
   sF1 = Left(sF1, lPosDec1)
Else
   lCarry = 0
End If

lStrLen = Len(s1)
If lStrLen < Len(s2) Then
   lStrLen = Len(s2)
   sA = String(lStrLen - Len(s1), "0") & s1
   sB = s2
Else
   sA = s1
   sB = String(lStrLen - Len(s2), "0") & s2
End If

Do While lStrLen > 0
   d = 0 + Mid(sA, lStrLen, 1) + Mid(sB, lStrLen, 1) + lCarry
   If d > 9 Then
       sR = (d - 10) & sR
       lCarry = 1
   Else
       sR = d & sR
       lCarry = 0
   End If
   lStrLen = lStrLen - 1
Loop
If lCarry > 0 Then
   sR = lCarry & sR
End If

If lPosDec1 > 0 Then
   sbDecAdd = sR & Application.DecimalSeparator & sF1
Else
   sbDecAdd = sR
End If

End Function

Download

Please read my Disclaimer.

sbdec2bin.xlsm [32 KB Excel file, open and use at your own risk]
